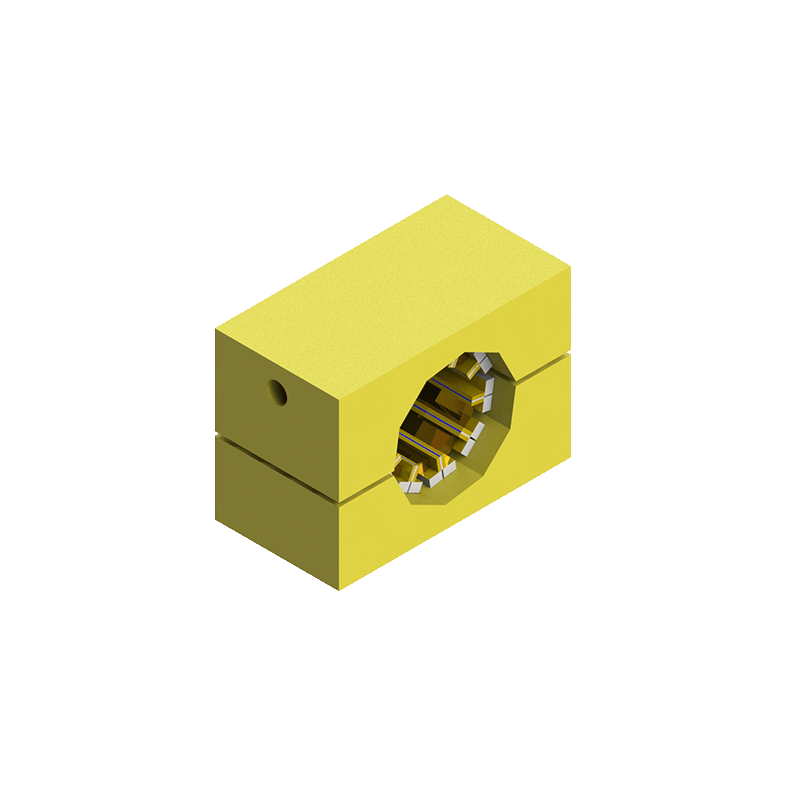

CA01 Series Circular Conduction-Cooled Diode Laser Array

The CA01 series circular conduction-cooled diode laser array is a high peak power product developed by RealLight for operation at high temperatures up to 60℃. This series is composed of multiple bars arranged in a circular configuration, with a power of 100W/200W per bar. Other wavelengths and packaging forms can be customized.

Datasheets E-mail Message
CA01 Series Circular Conduction-Cooled Diode Laser Array
APPLICATION

  • Pumping source

  • Illumination
  • Laser processing
  • Scientific research

KEY FEATURES

  • AuSn solder for packaging

    /
  • High temperature application
    /
  • High peak power
    /
  • High reliability

    /
PRODUCT PARAMETERS
Optical Parameters
Center Wavelength λc（nm） 790~812
Wavelength Tolerance δλc（nm） ±3
Output Power per Bar（W） 100 200
Number of Horizontal Arrays customized
Array-to-Array Pitch customized
Number of Bars per Stack customized
Bar-to-Bar Pitch（mm） customized
Spectral Width（FWHM）（nm） <6
Fast Axis Divergence Angle（FWHM）（°） ≤40
Slow Axis Divergence Angle（FWHM）（°） ≤10
Wavelength Temperature Coefficient（nm/℃） ~0.3
Electrical Parameters
EO Conversion Efficiency（%） ≥50
Threshold Current Ith（A） ≤20 ≤30
Operating Current Iop（A） 100 220
Operating Voltage Vop of each Bar（V） ≤2.1
Duty Cycle（%） <0.8%
Pulse Width（μs） ≤300
Repetition Rate（Hz） ≤25 ≤20
Environment Parameters
Operating Temperature（℃） -40~65
Storage Temperature（℃） -45~85

Notes：

1. Wavelengths from 940nm to 960nm available upon request.
2. The installation and wiring can be customized to meet the customer’s requirements.
3. All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.
