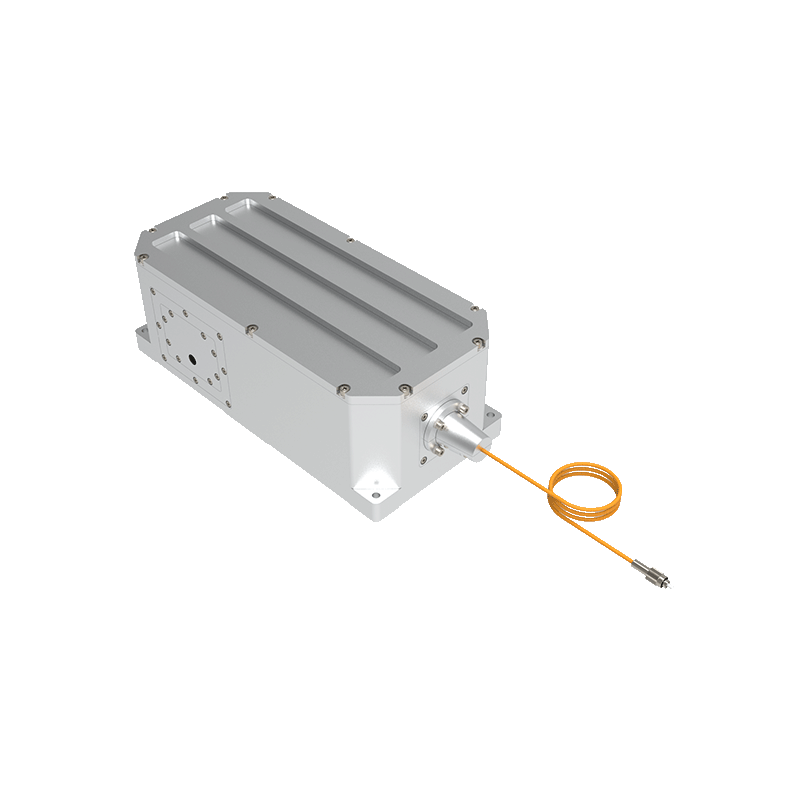

The HQE Series Diode-Pumped Long-Pulse 2940 nm Er:YAG Laser consists of a laser module unit and an energy detection module. It delivers an output wavelength of 2940 nm. Adopting self-developed high-peak-power diode lasers as the pump source, it is capable of high-energy laser output with superior beam quality. Optimized resonator design enables compact footprint. It finds broad applications in the biomedical field. Customization for free-space output is available. Supporting accessories including light-guide arm, control display, power supply and water chiller can be provided.
HQE Series Diode‑Pumped Solid‑State Long‑Pulse Laser
애플리케이션
-
Analytical instruments
-
생의학
- Materials processing
주요 특징
-
Power: 5 W
/ -
Repetition rate up to 50 Hz/
-
Excellent beam spot uniformity/
-
Superior stability/
-
Compact structure with sealing treatment, high reliability/
제품 매개변수
| 광학적 매개변수 | ||
| 파장(nm) | 2940 | |
| Wavelength tolerance (nm) | ±5 | |
| Max. repetition rate (Hz) | 50 | |
| Max. output Power (W) | 5 | |
| 펄스 에너지(mJ) | 250@20Hz | |
| Pulse width (μs) | 80~300 | |
| Energy stability (RMS) | <3% | |
| 빔 최대 발산각(일반값, mrad) | 수평 @1/e² | 4 |
| 수직 @1/e² | 6 | |
| Beam NA | <0.2 (Core diameter 450 μm) | |
| Cooling | Water cooled | |
| Output mode | Fiber delivery | |
| 시스템 매개변수 | ||
| 공급 전압 | 100~240 VAC, 50/60 Hz | |
| 소비 전력(와트) | 500 | |
| 레이저 헤드 크기(가로×세로×길이, mm) | 320×150×114 | |
| Operating environment | Temperature＜30 ℃, Humidity＜60% | |
1. 위 표의 모든 데이터는 25℃의 실온에서 수행된 시험에서 얻은 일반적인 값이며, 최종 데이터는 최종 시험 보고서를 기준으로 합니다.
기계 도면 (단위: mm)
HQE 2940nm Laser Size Diagram
