Modern handheld Raman lasers offer a variety of wavelength options, ranging from visible to near-infrared, including 532nm, 638nm, 785nm, 830nm, 976nm, and 1064nm. Each of these wavelengths has unique characteristics to meet diverse Raman detection needs. The 532nm laser, with its higher energy, generates strong Raman signals, making it particularly suitable for inorganic materials and certain organic compounds. The 638nm laser strikes a good balance between fluorescence suppression and signal intensity. The 785nm laser is currently the most widely used Raman excitation wavelength, excelling in organic compound detection. Longer wavelengths such as 830nm and 976nm effectively reduce fluorescence interference, while the 1064nm laser is especially suited for highly fluorescent samples.

These lasers typically employ narrow-linewidth diode laser technology, with linewidths controlled below 0.1 nm. The narrow-linewidth feature is crucial for obtaining high-resolution Raman spectra, enabling clear differentiation between adjacent Raman peaks and improving detection accuracy and reliability. Additionally, modern handheld Raman devices often offer both multi-mode and single-mode laser output options, allowing users to flexibly choose based on their detection requirements.

Single-Mode and Multi-Mode Lasers in Raman Detection

Single-mode lasers produce high-quality beams with excellent spatial coherence and uniform energy distribution (typically Gaussian), making them ideal for micro-Raman detection requiring high spatial resolution. In single-mode operation, the laser beam waist is smaller, enabling precise excitation of tiny areas—particularly important for heterogeneous samples or localized analysis. Moreover, single-mode lasers have long coherence lengths and high coupling efficiency with spectrometers, enhancing overall system sensitivity.

Multi-mode lasers, on the other hand, provide higher total output power, with larger spot sizes and potentially uneven energy distribution (due to mode superposition). This mode is suitable for rapid large-area screening or bulk analysis of homogeneous samples. In multi-mode operation, the higher total laser energy allows deeper sample penetration or compensation for surface scattering losses, making it more effective for turbid or opaque samples. In practice, many advanced handheld Raman devices allow users to switch between single-mode and multi-mode to adapt to different detection scenarios.

Wavelength Selection and Detection Performance
Choosing the appropriate excitation wavelength is a key factor in successful Raman detection. The 532nm laser is suitable for samples with large Raman cross-sections and low fluorescence interference, such as carbon materials and inorganic crystals. For most organic compounds, the 785nm laser is often the best choice, balancing signal intensity and fluorescence suppression. When dealing with highly fluorescent samples, 830nm or 1064nm lasers typically yield better results, even though Raman scattering intensity decreases significantly with increasing wavelength (inversely proportional to λ⁴).

In practical applications, matching laser power with sample properties is also crucial. High-power lasers may enhance signal strength but can also cause sample damage or thermal decomposition, particularly for biological or sensitive materials. Modern handheld Raman devices usually feature adjustable power settings, allowing users to optimize detection parameters based on sample characteristics. Additionally, the design of the detection optical system (e.g., confocality, collection efficiency) significantly impacts the quality of the acquired Raman signals.

The continuous advancement of handheld Raman technology is expanding its applications in pharmaceutical testing, security screening, material analysis, and biomedical fields. With progress in laser technology, spectral processing, and AI algorithms, future handheld Raman devices will achieve even higher performance and broader detection capabilities, providing users with more powerful and convenient analytical tools.

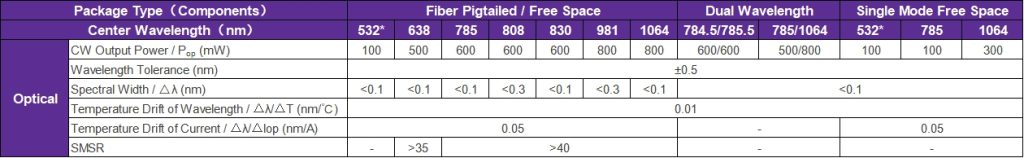

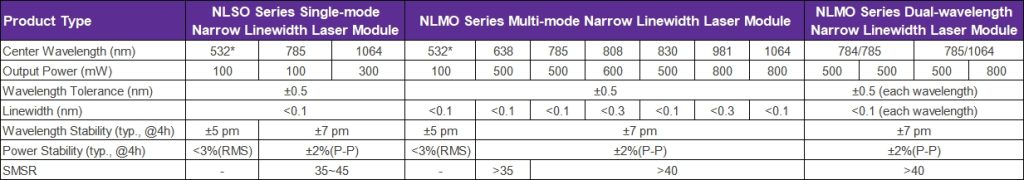

RealLight can provide narrow-linewidth diode laser products for handheld Raman spectroscopy equipment, including single-mode and multi-mode narrow-linewidth diode laser modules, featuring ultra-narrow linewidth (<0.1nm), excellent wavelength stability, and stable power output. With compact packaging design, low power consumption, and high reliability, these laser modules can be seamlessly integrated into portable Raman devices, delivering high-performance, cost-effective laser sources for the Raman spectroscopy industry, empowering next-generation handheld detection solutions.

Handheld Raman Lasers

Handheld Raman Lasers

Disclaimer: Some content in this article is sourced from the internet for technical research and discussion purposes. It is intended for reference and learning only. Please kindly point out any inaccuracies. For copyright concerns, contact us for verification and removal.
