PRODUCT
-
Erbium Glass series laser is RealLight’s self-developed, designed, manufactured diode laser pumped passively Q-switched laser based on erbium glass as laser gain medium, Er:glass laser also called eye-safe laser, wavelength is 1535nm, which can effectively inhibit the damage of laser to retina. Repetatin rate from 1Hz to 10HZ optional, output energy from 100μJ to 600μJ optional, utilize diode laser packing process, intergrating pumping module and laser crystal with full sealed design.It has features of small size, light weight(≥8g),wide temperature operation(-40~65℃), etc. It is widely used in eye-safe range finder, material analysis and other fields.
-

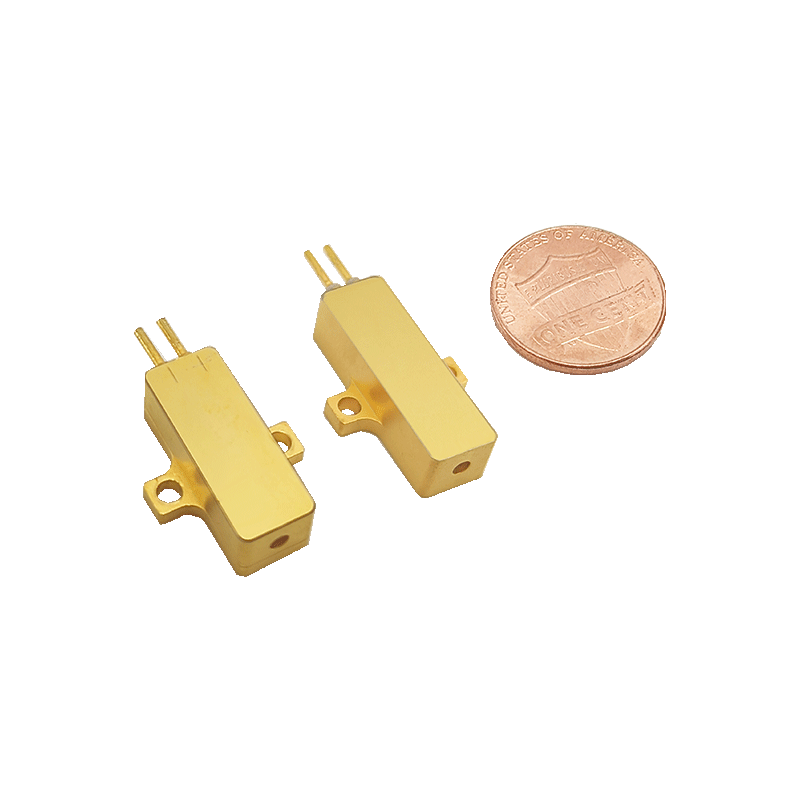

100~300μJ 1535nm Erbium Glass Lasers
1535nm Eye-safe
Pulse energy:100-300μJ
Repetition rate:10Hz
Pulse width:5ns
Weight:8-10g
-

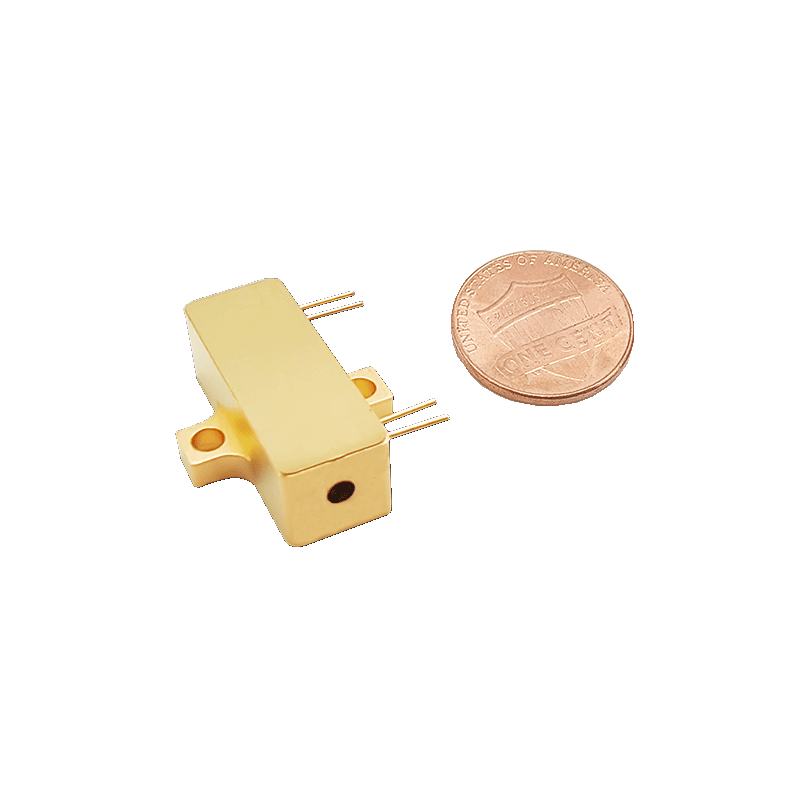

1535nm 100~300μJ Erbium Glass Lasers with PIN
1535nm Eye-safe
Pulse energy:100-300μJ
Repetition rate:10Hz
Pulse width:5ns
Weight:10g
with PIN
-
Mini 1535nm Erbium Glass Lasers
1535nm Eye-safe
Pulse energy:160μJ
Repetition rate:10Hz
Pulse width:3ns
Weight:3g
-

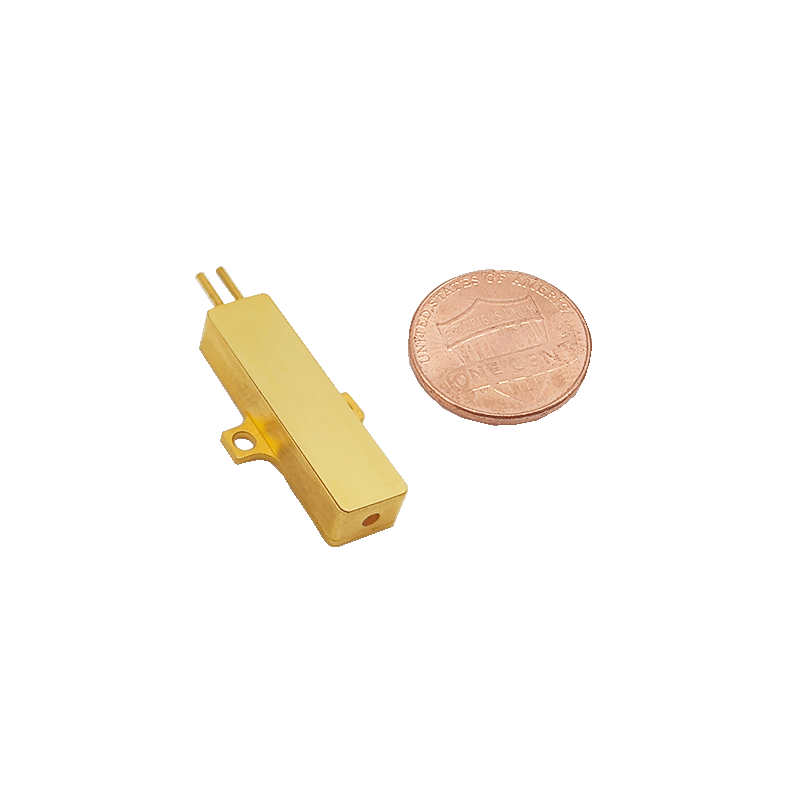

400~500μJ 1535nm Erbium Glass Lasers
1535nm Eye-safe
Pulse energy:400-500μJ
Repetition rate:10Hz
Pulse width:6ns
Weight:13g
-

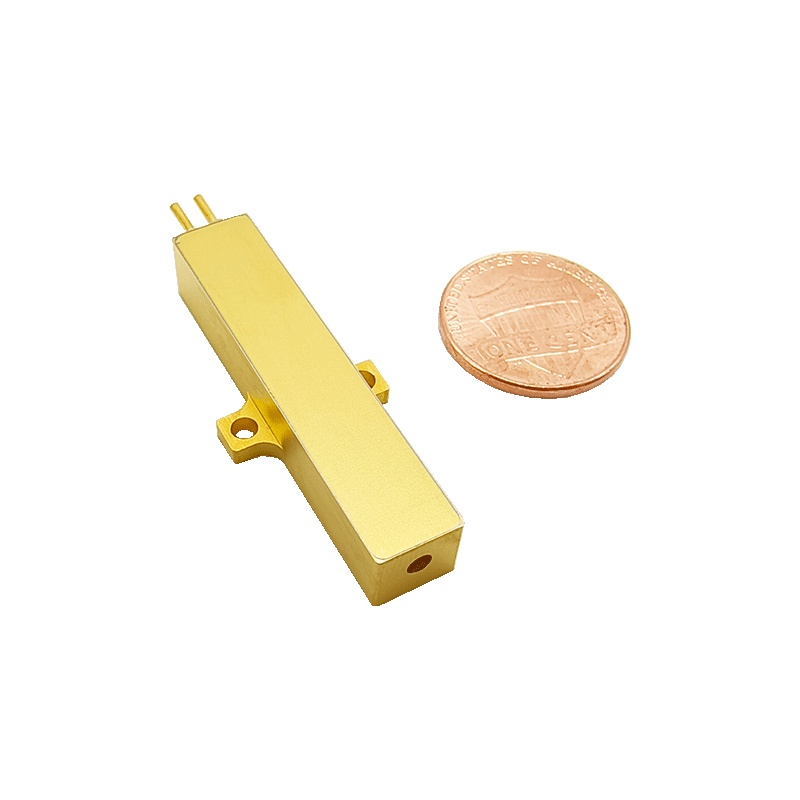

800~1000μJ 1535nm Erbium Glass Lasers
1535nm Eye-safe
Pulse energy:800-1000μJ
Repetition rate:5Hz
Pulse width:8ns
Weight:20g
-

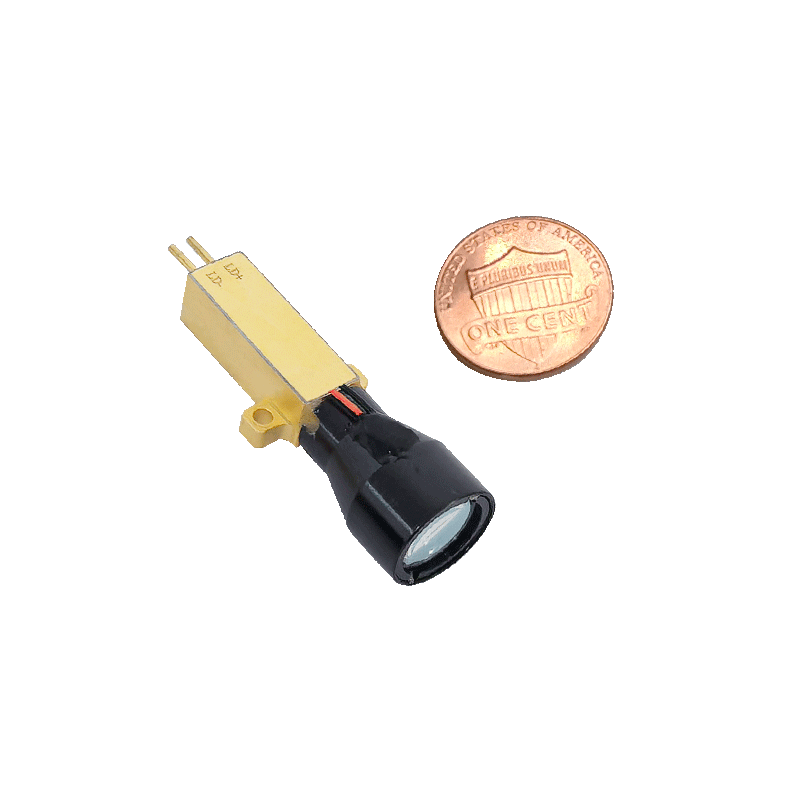

T01 Series Eye-safe Laser Transmitter
1535nm Eye-safe
Pulse energy:100-300μJ
Repetition rate:10Hz
Pulse width:5ns
Weight:13.5g
with transmitting antenna and photodiode
-

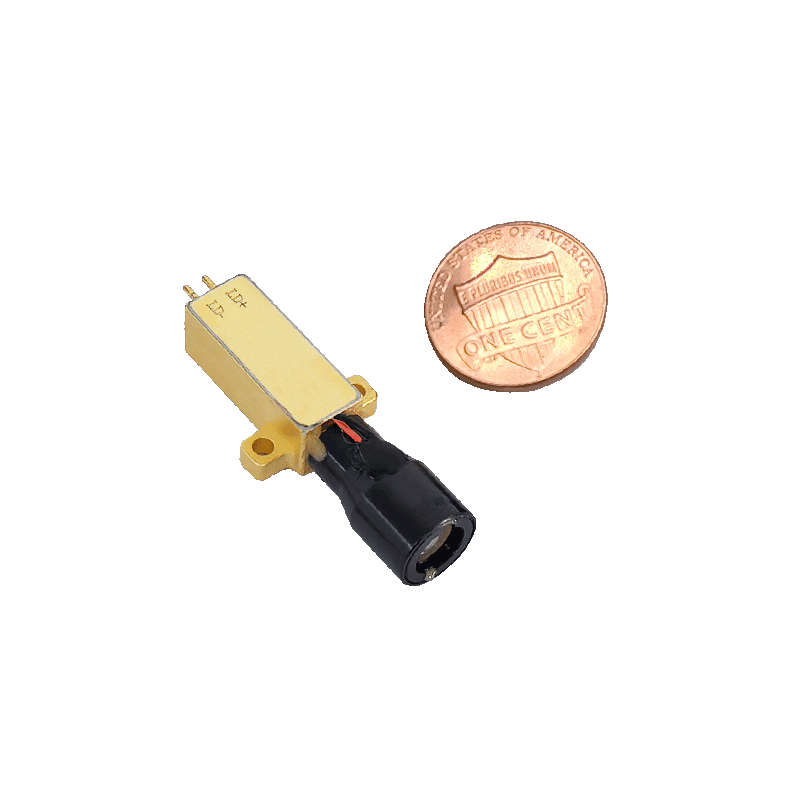

T02 Series Eye-safe Laser Transmitter
1535nm Eye-safe
Pulse energy:100-200μJ
Repetition rate:10Hz
Pulse width:5ns
Weight:11g
with transmitting antenna and photodiode
