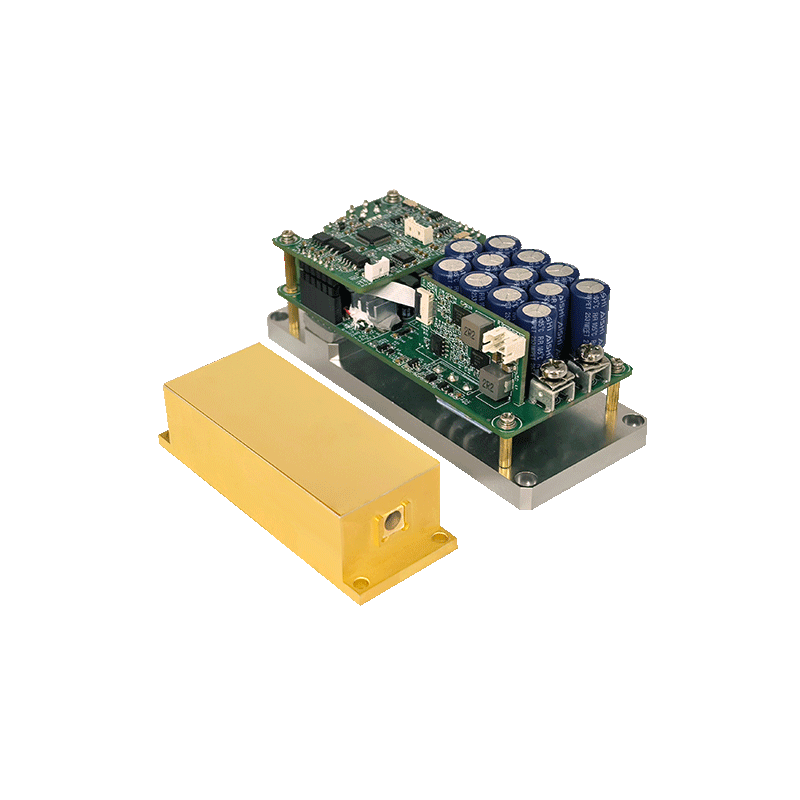

AQE Series 100mJ Diode Pumped Actively Q-switched Laser

The AQE series is a self-developed stack-pumped actively Q-switched laser by RealLight, which utilizes our proprietary high-peak-power diode laser arrays for uniform pumping, delivering actively Q-switched laser output with high energy, high stability, and low power consumption. The laser resonator adopts a hermetically sealed design, while the driving control circuit is easy to integrate, offering diverse options for extended customization. This product is widely used in fields such as biomedicine, radar ranging, precision machining and scientific research.

Datasheets E-mail Message
AQE Series 100mJ Diode Pumped Actively Q-switched Laser
APPLICATION

  • Spectrum analysis

  • Biomedicine
  • Laser manufacturing
  • Radar ranging
  • Scientific research

KEY FEATURES

  • Multiple wavelengths available: 1064/532/355/266nm

    /
  • Conduction cooling, low power consumption, high stability
    /
  • Supports both internal and external trigger functions
    /
  • Wide-temperature operation products are available for customization
    /
  • Optical shutter and energy detection functions can be customized
    /
  • Fiber coupling and position switch can be customized

    /
PRODUCT PARAMETERS
Optical Parameters
Wavelength (nm) 1064 532 355 266
Repetition rate (Hz) 1~20
Pulse energy (mJ) 100 50 25 10
Pulse width (ns) ≤10
Power stabilty (RMS) ≤3%
Full angle divergence typ. (mrad) Horizontal @1/e² ≤3
Vertical @1/e² ≤3
Beam diameter (at output port, mm) 4*4
Cooling method Air cooling
Laser dimensions (W×H×L,mm) 125×70×170 125×70×210
Operation temperature (℃) 10~35
Storage temperature (℃) -20~60
Driver Parameters
Supply power voltage 24VDC
Control interface J30J~21P
Power consumption (W) 150W
Trigger mode Trigger In/Out

All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.
