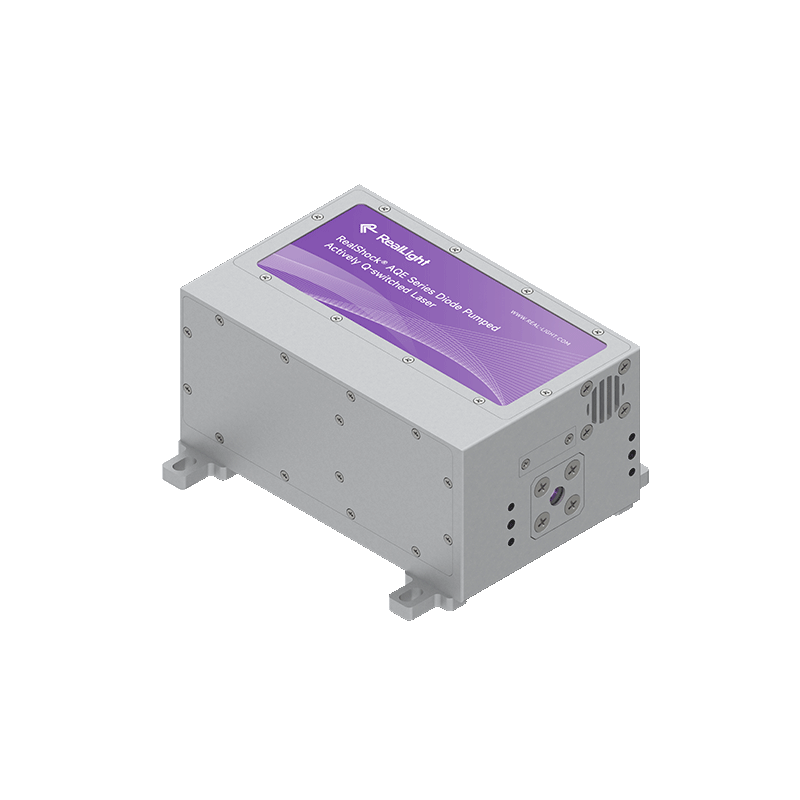

AQE Series 50mJ Diode Pumped Actively Q-switched Laser

The AQE series is a self-developed stack-pumped actively Q-switched laser by RealLight. Utilizing our proprietary miniature diode laser arrays for uniform pumping, it features an integrated design combining the laser-sealed cavity with the driving control circuit, enabling compact, high-peak-power actively Q-switched laser output. This product is widely used in fields such as radar, processing and scientific research.

Datasheets E-mail Message
AQE Series 50mJ Diode Pumped Actively Q-switched Laser
APPLICATION

  • Spectrum analysis

  • Biomedicine
  • Laser manufacturing
  • Radar ranging
  • Scientific research

KEY FEATURES

  • Multiple wavelengths available:1064/532/355/266nm

    /
  • Conduction cooling, compact design
    /
  • Low plug-in power consumption, strong environmental adaptability
    /
  • Wide-temperature operation products are available for customization

    /
PRODUCT PARAMETERS
Optical Parameters
Wavelength (nm) 1064 532 355 266
Repetition rate (Hz) 1~20
Pulse energy (mJ) 50 25 15 5
Pulse width (ns) ≤6
Power stabilty (RMS) ≤3%
Full angle divergence typ. (mrad) Horizontal @1/e² ≤4
Vertical @1/e² ≤4
Beam diameter (at output port, mm) 3*3
Cooling method Air cooling
Laser dimensions (W×H×L,mm) 95×70×150 95×70×190
Operation temperature (℃) 10~35
Storage temperature (℃) -20~60
Driver Parameters
Supply power voltage 24VDC　
Control interface J30J~21P
Power consumption (W) 120W
Trigger mode Trigger In/Out

All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.
