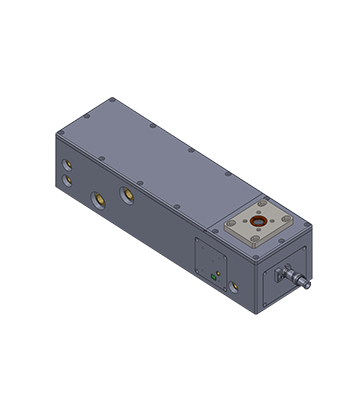

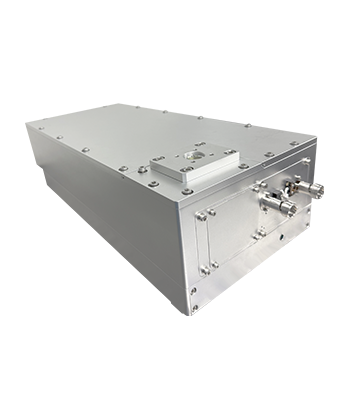

HQF Series Lamp-Pumped Dual-Wavelength Long-Pulse Laser (2940nm & 1064nm)

HQF series lamp-pumped dual-wavlength long pulse laser consists of a near-infrared laser module unit, a mid-infrared laser module unit and an energy detection module. This laser outputs dual wavelengths of 2940nm and 1064nm. Since different wavelengths target distinct chromophores and exhibit differential tissue penetration depths, they can be synergistically combined in clinical treatments. The system features high energy output, exceptional stability, and uniform beam distribution. Compatible accessories include output fibers, articulated arms, control panels, power supplies, and water-cooling units.

Datasheets E-mail Message
HQF Series Lamp-Pumped Dual-Wavelength Long-Pulse Laser (2940nm & 1064nm)
APPLICATION

  • Periodontics

  • Implantology
  • Pigmentary Disorders
  • Vascular Lesions
  • Soft Tissue Surgery
  • Photobiomodulation

KEY FEATURES

  • Dual-wavelength output at 2940nm & 1064nm

    /
  • Built-in energy detector
    /
  • Built-in shutter

    /
PRODUCT PARAMETERS
Wavelength (nm) 2940 1064
Single Pulse Energy (mJ) 1000 1000 500 200
Pulse Width (μs) 50~1000 150~25000
Repetition Rate (Hz) 20 10 30 25
Power (W) 20 10 15 5
Other Optical & System Parameters
2940nm&1064nm Beam Mode Multi-mode
Output Method via articulated arm (appearance subject to end-user requirements) via optical fiber
(300μm core)		 via optical fiber
(200μm core)
Laser energy stability (St) ±20% max.
Laser energy reproducibility (Rp) ±20% max.
Aiming Beam Wavelength 532±20nm
Aiming Beam Power >2mW
Working Conditions Ambient temperature: 10℃~30℃
Relative humidity: 10%~73% (non-condensing)
Atmospheric pressure: 86kPa~106kPa
Power supply: 220V/110V±10%AC, 50/60Hz

1. All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.
