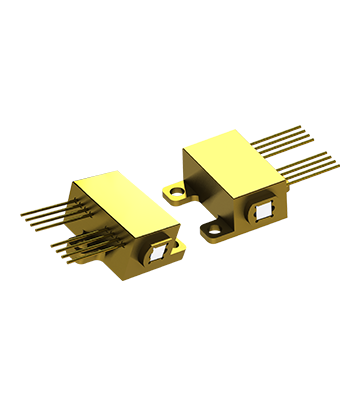

08LTR-mini Single-Mode Free Space Narrow Linewidth Diode Laser Components

Precise Laser Solution for Scientific and Instrumentation Users
The 08LTR-mini serves demanding engineering applications requiring a highly stable single-mode free space narrow linewidth diode laser. It targets system designers in Raman spectroscopy, compact instrumentation, and optical bench setups who require consistent center wavelengths at 785 nm and 1064 nm with low thermal drift. By combining wavelength locking with integrated environmental sensors, the module delivers reliable operation under continuous use. Its compact size simplifies integration, making it particularly suitable for laboratory and industrial environments where precision and stability are critical.

Advanced Technical Features for Enhanced Optical Performance
Incorporating VBG wavelength locking and a single-mode chip, the 08LTR-mini ensures a spectral linewidth below 0.1 nm with minimal temperature-induced wavelength drift of 0.01 nm/°C. This design includes integrated TEC cooling, photodiode, and thermistor, enabling real-time performance monitoring and thermal control. The module supports CW powers of 100 mW (785 nm) and 300 mW (1064 nm), and higher power options are available. Electrical parameters such as threshold current (0.05 A), operating voltage (1.8 V), and slope efficiency demonstrate efficient, consistent laser output tailored for precision photonics applications requiring stringent optical specifications.

Integration-Ready Diode Laser Supporting Critical Industry Applications
The 08LTR-mini fits complex optical platforms requiring narrow linewidth sources, such as Raman spectrometers and compact analytical instruments. Its stable single-mode output enhances spectral purity critical in spectroscopy and calibration systems, while the modular design facilitates system-level integration for portable and benchtop instruments. Industries including chemical analysis, biomedical diagnostics, and academic research benefit from reduced alignment complexity and robust performance across operating conditions. This module supports reliable wavelength stability testing and compact system architectures, improving engineering productivity and measurement accuracy.


Product Advantages
Modular Design and Integrated Thermal Control for Seamless System Integration
The 08LTR-mini’s architecture unifies a single-mode free space narrow linewidth diode laser with integrated thermoelectric cooling, photodiode detection, and temperature sensing, providing precise environmental regulation at the component level. This modular approach simplifies optical system assembly by reducing external control hardware and allows compact packaging. Its free-space output facilitates straightforward beam alignment in optical benches or instrument modules, accelerating development cycles. The package’s thermal and current control capabilities ensure stable wavelength performance, enabling deployment in environments that demand continuous, maintenance-minimized laser source operation.

High-Precision Stability Enhancing Operational Reliability and Efficiency
Delivering a spectral linewidth under 0.1 nm and a temperature wavelength drift of 0.01 nm/°C, the 08LTR-mini offers consistent single-mode laser output with minimal noise or instability. Its integration of active cooling and monitoring components supports long-term operational stability critical for demanding applications. The compact footprint reduces thermal mass, enabling rapid thermal equilibration and efficient power consumption. Users benefit from reduced drift, lower system complexity, and simplified alignment procedures. This performance profile supports high-throughput testing environments and field-portable analytical instrumentation requiring dependable, narrow linewidth sources.


Use Scenarios
Role in Raman Spectroscopy Systems
In precision Raman spectroscopy applications within chemical or pharmaceutical industries, the 08LTR-mini operates as the core narrow linewidth light source, enabling high spectral purity and reduced background noise. Its stable single-mode free space emission at 785 nm or 1064 nm ensures accurate molecular fingerprinting and reproducible analytical results. The integrated TEC cooler and sensors maintain wavelength integrity under temperature fluctuations typical in laboratory or industrial settings. The module’s compact format facilitates incorporation into handheld or benchtop Raman instruments, supporting seamless optical path integration and enhancing system reliability and measurement precision.

Application in Compact Laboratory Optical Bench Configurations
Within controlled research environments, the 08LTR-mini serves as a reliable single-mode laser source for free-space optical bench setups requiring narrow linewidth radiation. Its integrated thermal management and photodiode feedback enable precise power and wavelength control essential for experimental reproducibility. The component’s compact form factor reduces spatial footprint on optical benches and expedites alignment tasks by providing stable beam parameters. Researchers leverage this diode laser to support calibration, wavelength stability testing, and the construction of advanced photonic configurations, thereby improving overall laboratory workflow efficiency and experimental accuracy.


FAQ
What wavelengths are available in the 08LTR-mini single-mode free space narrow linewidth diode laser?
Our 08LTR-mini diode laser components are available at center wavelengths of 785 nm and 1064 nm, providing flexibility for diverse optical systems requiring stable, narrow linewidth laser light.

Can you customize the output power options for the 08LTR-mini module?
Yes, the standard CW output powers are 100 mW at 785 nm and 300 mW at 1064 nm. We also offer higher power options upon request to meet your specific performance requirements for the single-mode free space narrow linewidth diode laser.

How does the integrated TEC cooler improve performance in this diode laser?
The integrated TEC cooler, along with the photodiode and thermistor, maintains stable operating temperature and feedback control, reducing wavelength drift and ensuring consistent output in our 08LTR-mini single-mode free space narrow linewidth diode laser modules.

What installation support do you provide for integrating these diode laser components into existing optical systems?
We supply detailed technical specifications and assistance to ensure smooth integration of the compact 08LTR-mini module, designed for easy bench-top alignment and system-level integration in Raman spectroscopy and related applications. Contact us for technical support.
