PRODUCT
-

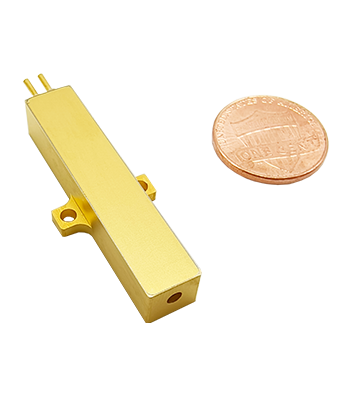

Erbium glass series laser is RealLight’s self-developed, designed, manufactured diode laser pumped passively Q-switched laser based on erbium glass as laser gain medium, Er:glass laser also called eye-safe laser, wavelength is 1535nm, which can effectively inhibit the damage of laser to retina. Repetition rate from 1Hz to 5kHZ optional, output energy from 10μJ to 2mJ optional, utilize diode laser packing process, intergrating pumping module and laser crystal with full sealed design. It has features of small size, light weight (≥8g), wide temperature operation (-40 to 65℃), etc. It is widely used in eye-safe range finder, material analysis and other fields.
-
100~300μJ 1535nm Erbium Glass Lasers
1535nm Eye-safe
Pulse energy:100-300μJ
Repetition rate:10Hz
Pulse width:5ns -
1535nm 100~300μJ Erbium Glass Lasers with PIN
1535nm Eye-safe
Pulse energy:100-300μJ
Repetition rate:10Hz
Pulse width:5ns
with PIN -
400~500μJ 1535nm Erbium Glass Lasers
1535nm Eye-safe
Pulse energy:400-500μJ
Repetition rate:10Hz
Pulse width:6ns -
800~1000μJ 1535nm Erbium Glass Lasers
1535nm Eye-safe
Pulse energy:800-1000μJ
Repetition rate:5Hz
Pulse width:8ns -
T01 Series Eye-safe Laser Transmitter
1535nm Eye-safe
Pulse energy:100-300μJ
Repetition rate:10Hz
Pulse width:5ns
with transmitting antenna and photodiode -
T02 Series Eye-safe Laser Transmitter
1535nm Eye-safe
Pulse energy:100-200μJ
Repetition rate:10Hz
Pulse width:5ns
with transmitting antenna and photodiode -

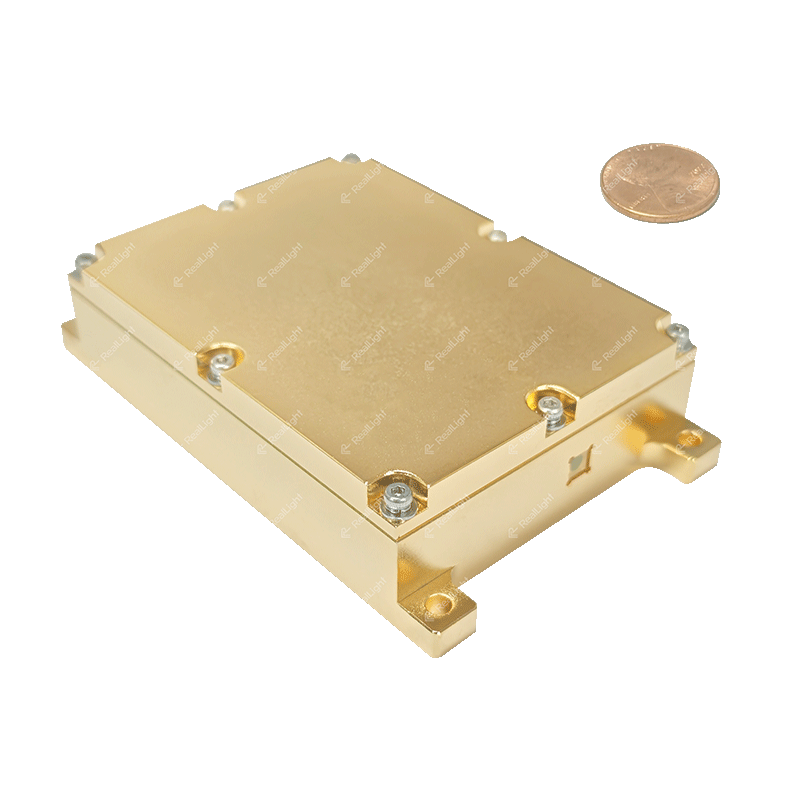

2mJ 1535nm Erbium Glass Lasers
1535nm Eye-safe
Pulse energy:2mJ
Repetition rate:5Hz
Pulse width:11ns -
High Repetition Rate 1535nm Erbium Glass Lasers
1535nm Eye-safe
Pulse energy:10-40μJ
Repetition rate:1-5kHz
Pulse width:5-8ns -
High Repetition Rate 1535nm Erbium Glass Lasers with PIN
1535nm Eye-safe
Pulse energy:10-40μJ
Repetition rate:1-5kHz
Pulse width:5-8ns
with PIN -
PIN Detector
Response wavelength: 990-1650nm
-
1535nm Narrow Bandpass Filter
1535nm
