High repetition rate 1535nm Erbium glass lasers with photodetector (PIN) are RealLight’s self-developed eye-safe lasers operating at 1-5kHz. This series of lasers are equipped with integrated photodetector(PIN), which is able to provide PD output signal. Utilizing the semiconductor laser packaging technology, these lasers feature compact size, sufficient performance stability and excellent beam quality.

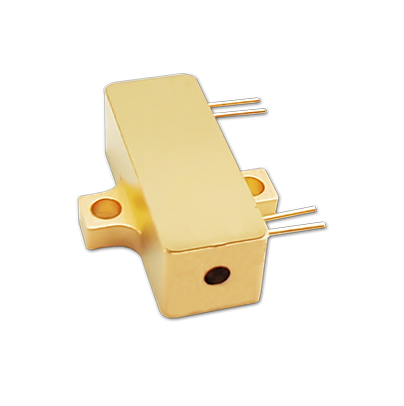

RealSubns® High Repetition Rate 1535nm Erbium Glass Lasers with PIN
PRODUCT PARAMETERS
| Wavelength ( nm ) | 1535 | ||
| Pulse energy (μJ) | 40 | 20 | 10 |
| Repetition rate (kHz) | 1 | 2.5 | 5 |
| Pulse width (typ., ns) | 5 | 6 | 8 |
| Energy Stability (RMS) | 3% | ||
| Beam full divergence (typ., mrad) | 20 | 17 | 18 |
| Beam profile | TEM00 | ||
| PIN amplitude (V@50Ω resistance) | 2 | ||
| Operating current (A) | 5 | ||
| Operating voltage (V) | 2 | ||
| Dimensions (L×W×H,mm) | 25x8x7 | ||
| Weight (g) | 12 | ||
| Operation temperature (℃) | -40~65 | ||
| Storage temperature (℃) | -45~80 | ||
All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.
APPLICATION
-
Obstacle avoidance radar
- Meteorological radar
- Laser rangefinder
KEY FEATURES
-
Integrated PIN, provides PD output signal
/ - Passively Q-Switched, Er: Glass/
- Eye-safe/
- Wide temperature operation/

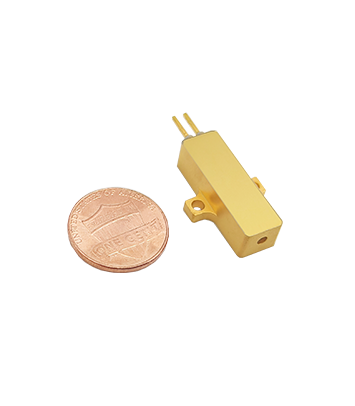

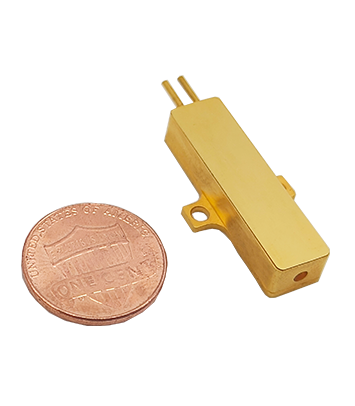

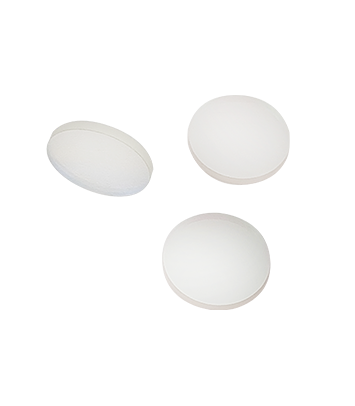

RECOMMENDED PRODUCTS
