MCH Series 300ps SLM Microchip Laser 532nm

MCH series RealSubns® Single longitudinal mode (SLM) microchip lasers are compact, economical and reliable diode pumped passively Q-switched solid state lasers independently developed by Reallight, with stable output energy, high peak powers and excellent beam quality. The system supports internal trigger and external trigger.

Datasheets E-mail Message

MCH Series 300ps SLM Microchip Laser 532nm

PRODUCT PARAMETERS

Optical Parameters
Wavelength（nm）		1064			532
Repetition rate (kHz)		20	50	100	20	50	100
Average power (mW)		60	100	100	30	50	50
Pulse energy (μJ)		3	2	1	1.5	1	0.5
Pulse width (ps)		350		500	300		500
Power stability (RMS, @8h)		<3%
Beam profile		TEM00
Beam full divergence (typ., mrad)	Horizontal @1/e²	25		30	16		25
	Vertical @1/e²	25		30	16		25
Polarization ratio		>100:1
System Parameters
Supply power voltage		100~240 VAC, 50/60 Hz
Control interface		RS232
Power consumption (W)		≤35	≤40	≤40	≤35	≤40	≤40

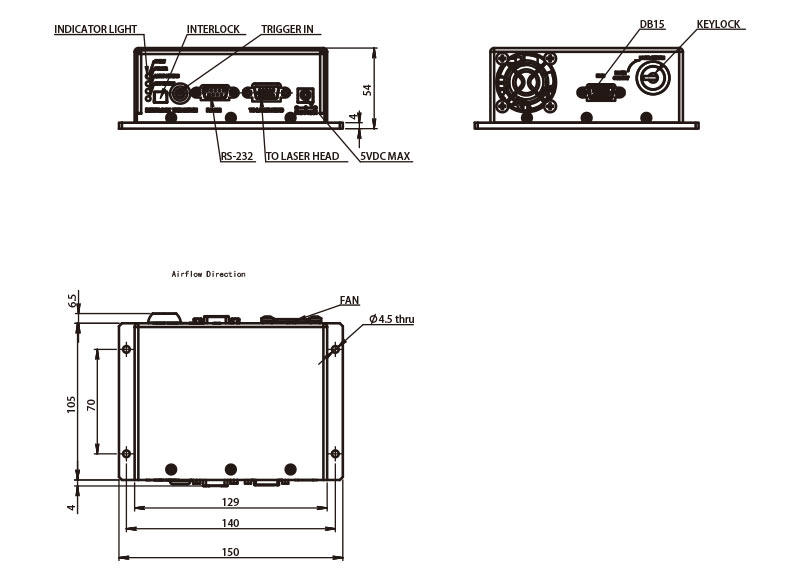

Power dimensions (W×H×L,mm)		150×54×105
Laser head dimensions (W×H×L,mm)		45×33×120
Operation temperature (℃)		15~35
Storage temperature (℃)		0~60

1. Wavelengths of 355nm and 266nm are available upon request.
2. Other repetition rates can be customized.
3. All the data in the above table are the typical values obtained from the tests at room temperature of 25℃, and the final data is subject to the final test report.

APPLICATION

Seed laser
Micromachining
Raman spectroscopy
Laser ranging
Laser-induced fluorescence (LIF)
Laser ultrasonic imaging
Time of flight mass spectrometer (TOFMS)
Photolithography

KEY FEATURES

Pulse width down to 300ps

/
High energy stability

/
Repetition rate up to 100kHz

/
Spatial mode TEM₀₀

/
Polarization-stable

/
