PRODUCT
-
The high energy solid-state lasers independently developed, designed, and manufactured by Reallight, include Picosecond Solid-State Laser, Q-switched Solid-State Laser and Nanosecond Lamp Pumped Electro-optical Q-switched Laser, which feature large energy and high peak power. The high energy solid-state lasers delivers output wavelengths at 2940nm, 1064nm, 532nm, 355nm, 266nm. The Picosecond lasers are combined with RealLights’s self-developed MCD series of sub-nanosecond microchip lasers at 300ps-2ns as seed sources, and other components like RL-ISO series isolator and RL-ROT series rotator.They are cost-effective and widely used in medical aesthetics, material analysis, radar ranging, laser processing and other fields.
-
HQF Series Lamp-pumped Picosecond Laser
1064 / 532nm Dual-Wavelength
Repetition rate:1-10Hz
Pulse energy:200-500mJ
Pulse width:350-400ps
can be equipped with an optional built-in optical shutter and energy detector
-
HQF Series Lamp-pumped Picosecond Laser with Built-in Energy Detector
1064 / 532nm Dual-Wavelength
Repetition rate:1-10Hz
Pulse energy:250-500mJ
Pulse width:300ps
built-in optical shutter and energy detector
-

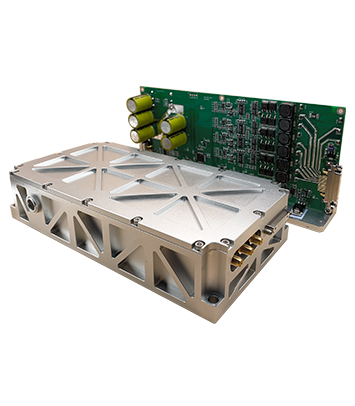

HQP Series High Peak Power Sub-nanosecond Lasers
1064nm, 532nm
Repetition rate:5-50kHz
Pulse energy:40-500μJ
Pulse width:500ps-2ns
-
HQF Series Lamp-pumped Q-switched Nanosecond Laser
1064 / 532nm Dual-Wavelength
Repetition rate:1-10Hz
Pulse energy:400mJ-1.2J
Pulse width:<8ns
-
AQE Series 180mJ Diode Pumped Actively Q-switched Laser
1064nm, 532nm, 355nm, 266nm
Repetition rate:1-10Hz
Pulse energy:20-180mJ
Pulse width:≤10ns
-
AQE Series 100mJ Diode Pumped Actively Q-switched Laser
1064nm, 532nm, 355nm, 266nm
Repetition rate:1-20Hz
Pulse energy:10-100mJ
Pulse width:≤10ns
-
AQE Series 50mJ Diode Pumped Actively Q-switched Laser
1064nm, 532nm, 355nm, 266nm
Repetition rate:1-20Hz
Pulse energy:5-50mJ
Pulse width:≤6ns
-
PQE Series High Energy Solid-state Laser
1064nm
Repetition rate:10Hz
Pulse energy:>10mJ
Pulse width:<3ns
-
HQF Series Lamp-Pumped Dual-Wavelength Long-Pulse Laser (2940nm & 1064nm)
2940nm / 1064nm Dual-Wavelength
Repetition rate:10-30Hz
Pulse energy:200mJ-1J
Pulse width:50μs-25ms
-
HQF Series Lamp-Pumped Long Pulse 2940nm Er:YAG Laser
2940nm Er:YAG
Repetition rate:10-20Hz
Pulse energy:500mJ-2J
Pulse width:300-500μs
-
Power Supply Control System for Lamp-Pumped Lasers
consists of:
a master control unit,
a 1000-2000W pulsed xenon lamp power supply,
an industrial touchscreen,
a water-cooling system
-

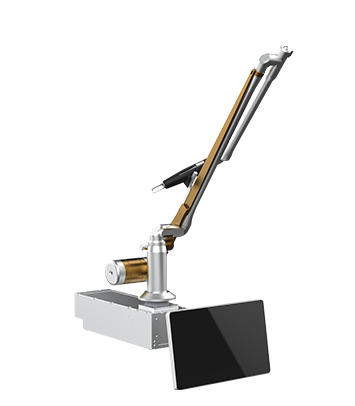

Articulated Arm and Handpieces for Picosecond Laser
1064nm, 650nm, 532nm
7 Joint unit
Wide Variety of Handpieces Available
-

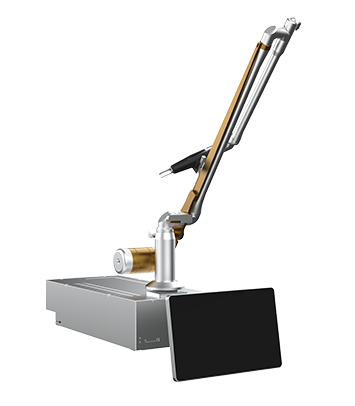

Articulated Arm and Handpieces for Q-switched Laser
1064nm, 650nm, 532nm
7 Joint unit
Wide Variety of Handpieces Available
-
Articulated Arm for 2940nm Er:YAG Pulse Solid-state Laser
2940nm, 532nm
7 Joint unit
