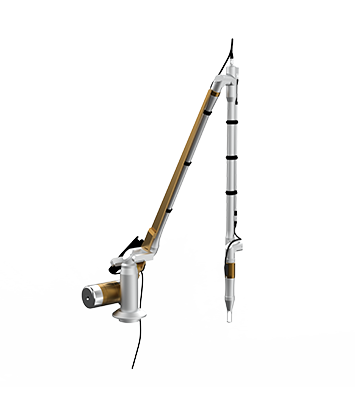

Articulated Arm and Handpieces for Picosecond Laser

Articulated Arm & Handpiece Matching for Picosecond Lasers

1. Product Overview
RealLight develops dedicated 7-joint laser articulated arms and matching treatment handpieces, tailor-made for RealLight HQF 1064nm & 532nm high-energy picosecond lasers. This integrated beam delivery system addresses common industry pain points including laser energy loss, beam drift, dust contamination and unsmooth operation. Equipped with precision reflective optical path and fully sealed protective housing, it consistently ensures high transmittance and beam accuracy for aesthetic clinics, optical labs and industrial laser processing, improving stability of clinical treatment and measurement results.

2. Core Advantages
2.1 Fully Sealed Dust-Proof Optical Path for Long-Term Stability
The fully enclosed optical cavity blocks dust, moisture and aerosols in clinics from contaminating reflective mirrors, preventing energy attenuation and beam distortion caused by stained lenses. It extends the service life of optical components and eliminates frequent disassembly for cleaning, suitable for aesthetic salons, laboratories and manufacturing workshops.

2.2 7-Joint Smooth Movement with Zero Beam Deviation
Adopting balanced 7-joint mechanical design for smooth, jitter-free 360° rotation without dead angles. High-precision reflective optics limit beam center offset within ±0.5 mm at any working angle, maintaining precise spot positioning and reducing operator fatigue during long procedures.

2.3 Ultra-High Transmission Efficiency with Minimal Energy Loss
Compatible with 1064nm treatment laser, 532nm frequency-doubled laser and 650nm aiming beam. The maximum clear aperture reaches φ16 mm with a total beam travel length of 1670 mm and overall transmittance over 90%, preserving full pulse energy for tattoo removal, pigment therapy, LIBS excitation and laser shock peening.

2.4 Lightweight Robust Frame with Customizable Appearance
Constructed from 6061 aviation aluminum alloy, the whole arm weighs only 10.5 kg with balanced load distribution to ease long-duration manual operation. Multiple housing colors are customizable to match equipment brand styling for OEM aesthetic devices.

3. Wide Application Fields
3.1 Biomedical & Aesthetic Medicine (Primary Application)
Matched with picosecond aesthetic systems for full-spectrum tattoo removal, elimination of freckles, melasma and age spots, skin rejuvenation and epidermal tissue ablation. High beam stability and transmittance reduce treatment cycles and minimize thermal damage to skin tissue.

3.2 Optical Scientific Research & Detection
Suitable for Laser-Induced Breakdown Spectroscopy (LIBS), laser-induced fluorescence, Raman spectroscopy, particle image velocimetry, laser ultrasonic testing, differential absorption lidar and laser ranging. Stable long-path beam guarantees repeatable spectral data and ranging signals.

3.3 Industrial Laser Machining
Applied to precision microfabrication and laser shock peening. Flexible multi-joint design enables multi-angle processing on complex workpieces with consistent beam quality for uniform machining outcomes.

4. Product Summary
RealLight 7-joint articulated arm with matching handpieces serves as original standard beam delivery accessory for HQF picosecond lasers. Featuring fully sealed dust-proof structure, high optical transmittance, minimal beam drift and ergonomic lightweight design, it resolves typical defects of generic light guides such as energy loss, easy contamination, stiff movement and spot shifting. A single system covers aesthetic, research and industrial scenarios with durable construction and customizable appearance, making it the preferred standardized beam transmission solution for OEM integration and equipment upgrading.
