RealLight’s diode laser stacks utilize the high reliable AuSn solder technology and low thermal resistance package, providing large duty cycle and high peak power output under different modes of operation. Multi-wavelength output, wide temperature operation and FAC collimation are available upon request. 792nm~818nm and 940nm~960nm output wavelengths are customizable for all product lines. These diode laser stacks are preferred for applications include pumping, material processing, laser illumination, aesthetic treatment scientific research, etc.
-

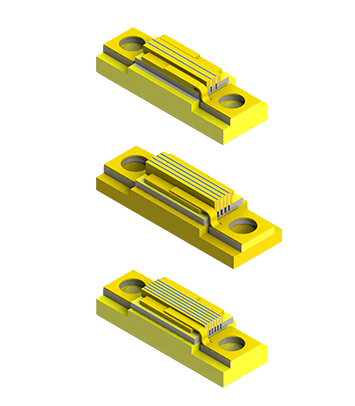

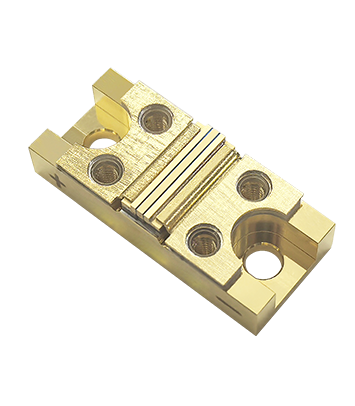

GS16 Conduction-cooled Vertical Stacked Diode Laser Array
790-812nm, 940nm
1-5 Bars
Per Bar：100-200W
-

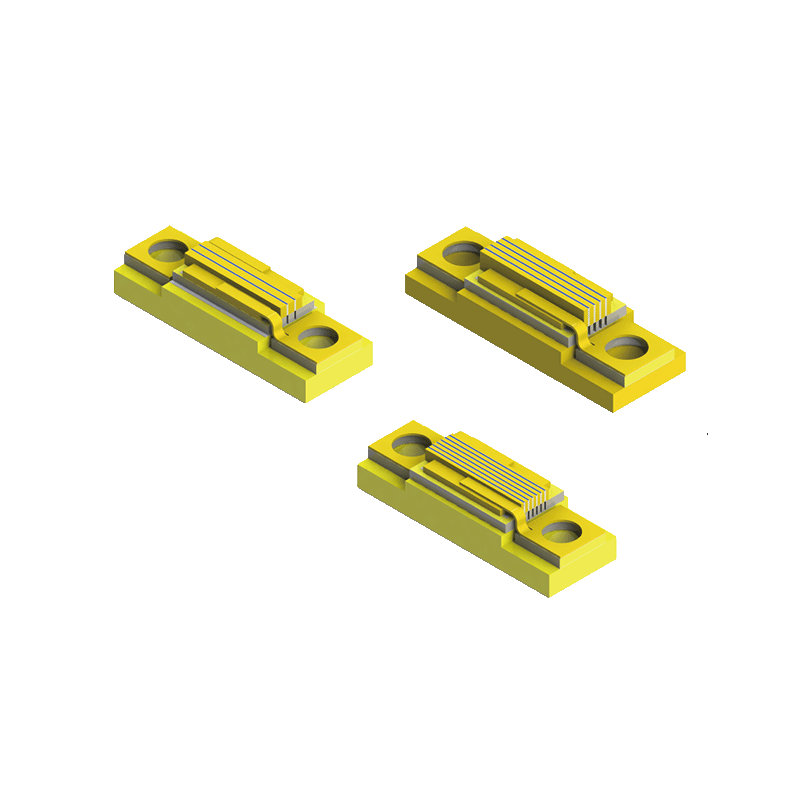

GS12 Conduction-cooled Vertical Stacked Diode Laser Array
790-812nm, 940nm
1-6 Bars
Per Bar：100-200W
-
GS15 Conduction-cooled Vertical Stacked Diode Laser Array
790-812nm, 940nm
1-12 Bars
Per Bar：100-200W
-

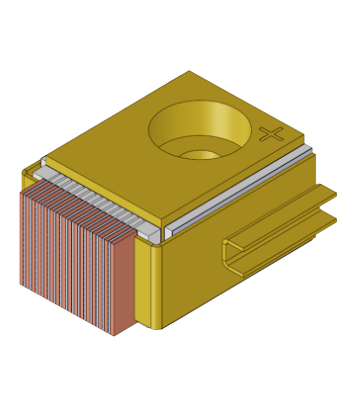

GS07 Conduction-cooled Diode Laser Array
796-808nm
1-15 Bars
Per Bar：180W
-

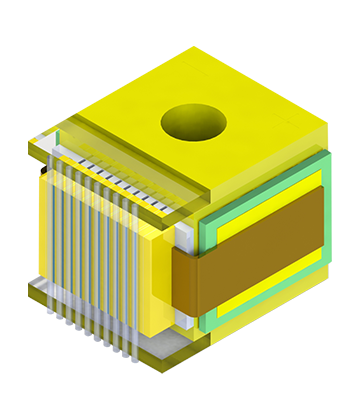

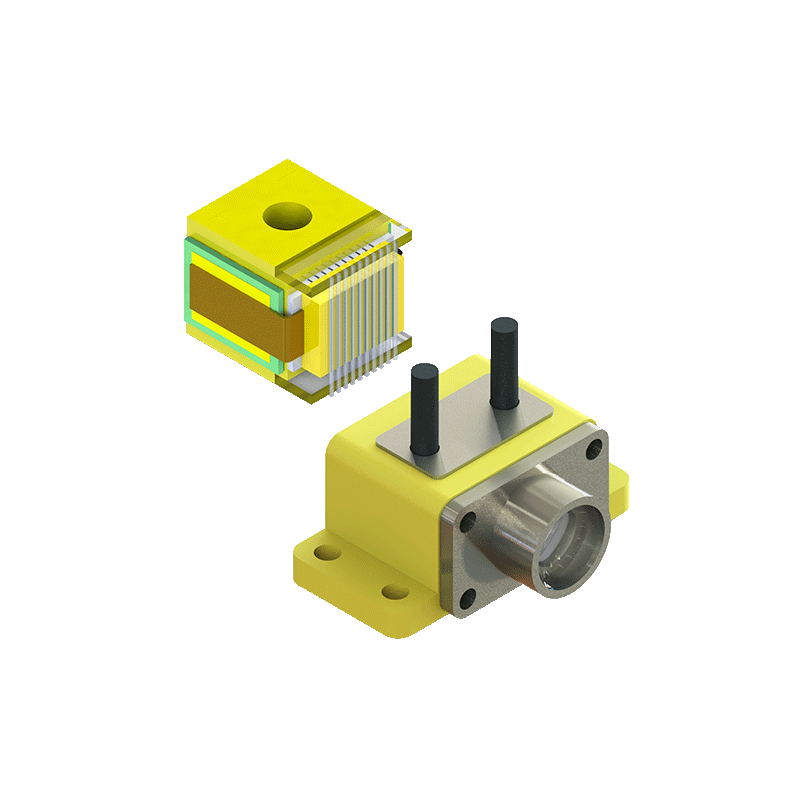

GS06 Conduction-cooled Diode Laser Array
796-808nm
9 Bars
Per Bar：200W
Equipped with a FAC and a SAC
-

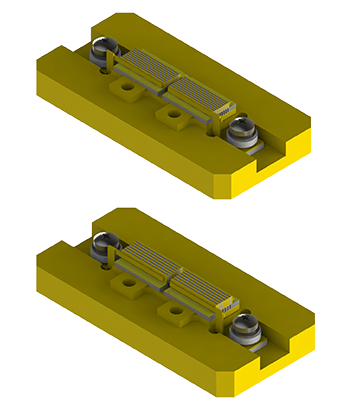

AA-2 Series Conduction-cooled Diode Laser Array
790-812nm
940nm to 960nm available upon request
12-16 Bars
Per Bar：100-200W
-

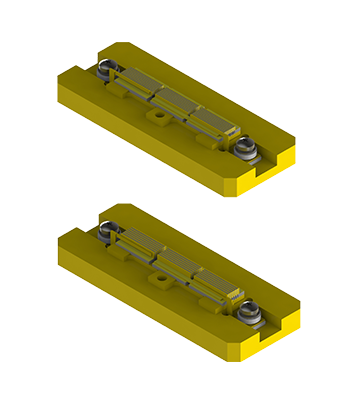

AA-3 Series Conduction-cooled Diode Laser Array
790-812nm
940nm to 960nm available upon request
18-24 Bars
Per Bar：100-200W
-

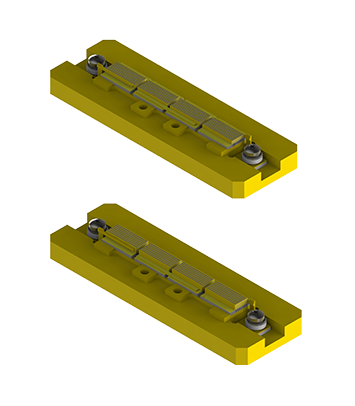

AA-4 Series Conduction-cooled Diode Laser Array
790-812nm
940nm to 960nm available upon request
28-36 Bars
Per Bar：100-200W
-
2400W Conduction Cooled QCW Diode Side-Pumped Module
Pump Wavelength：808nm
18-24 Bars
Pump Peak Power：1800-2400W
-

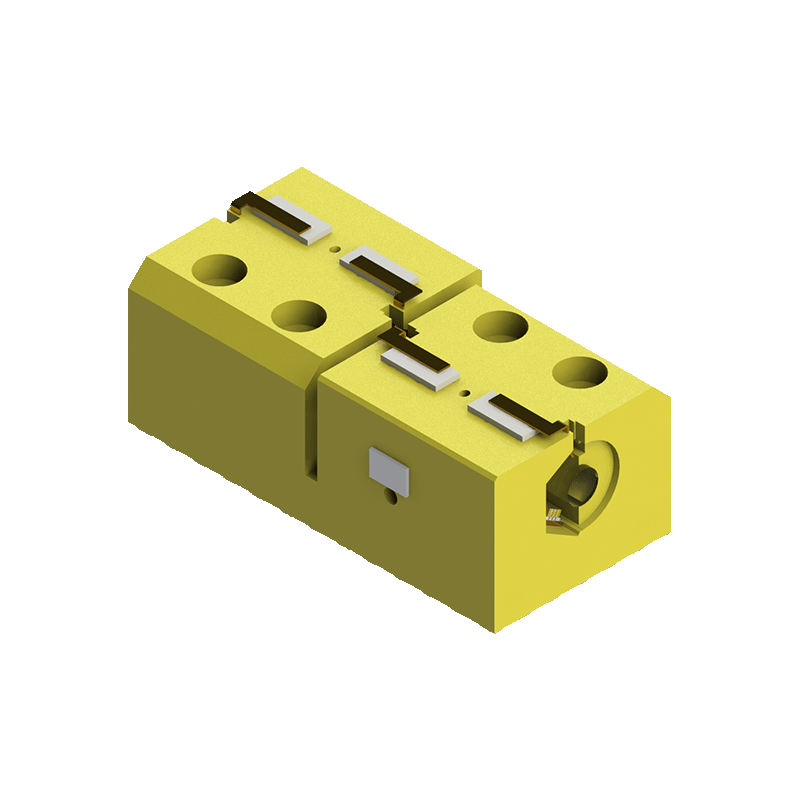

7200W Conduction Cooled QCW Diode Side-Pumped Module
Pump Wavelength：808nm
48-72 Bars
Pump Peak Power：4800-7200W
-

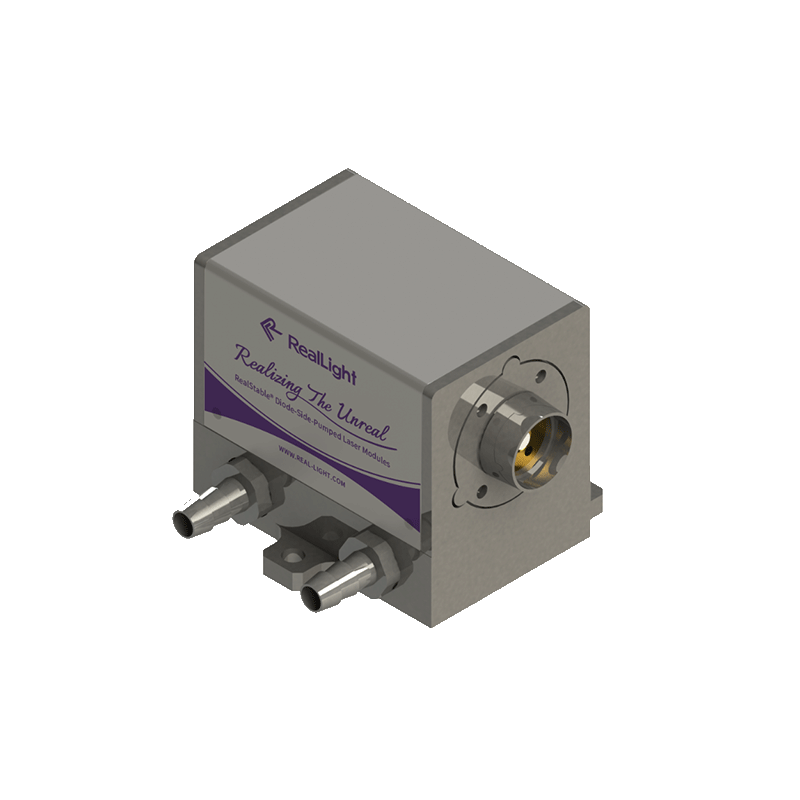

3000W Water Cooled QCW Diode Side-pumped Module
Pump Wavelength：808nm
12 Bars
Pump Peak Power：2400-3000W
-

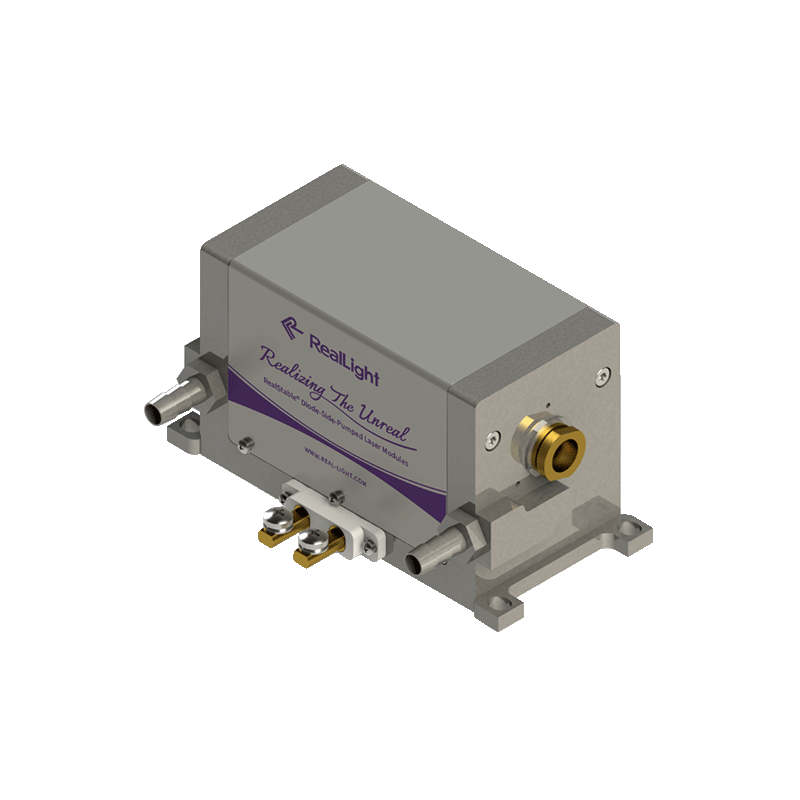

7500W Water Cooled QCW Diode Side-pumped Module
Pump Wavelength：808nm
30 Bars
Pump Peak Power：6000-7500W
-
15000W Water Cooled QCW Diode Side-pumped Module
Pump Wavelength：808nm
60 Bars
Pump Peak Power：12000-15000W
-

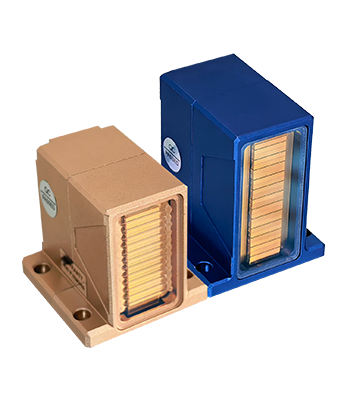

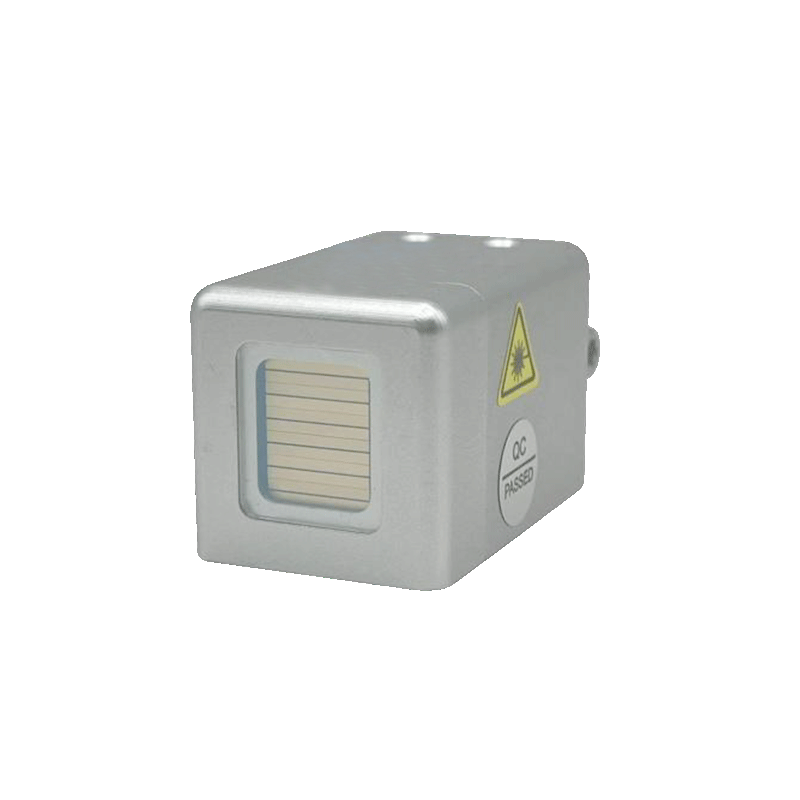

WV10 808nm-600W Macro Channel Diode Laser Array
808nm
Output Power：600W
Multi-wavelength operation: 755/808/940/1064nm
-

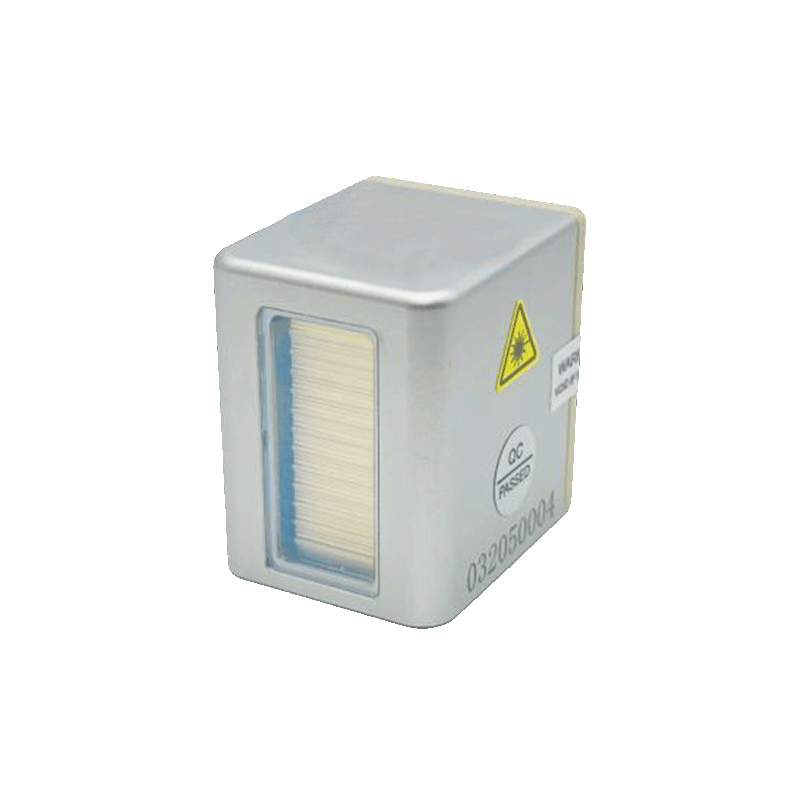

WV11 808nm-1200W Macro Channel Diode Laser Array
808nm
Output Power：1200W
Multi-wavelength operation: 755/808/940/1064nm
