PRODUCT
-
RealLight developed, designed, and manufactured a series of diode lasers include quasi-wavelength diode lasers, narrow linewidth diode lasers, and diode laser stacks. With wavelength range covers from 405nm to 1940nm, the multi-function diode lasers are mainly used in laser dentistry, laser therapy, veterinary medicine and other laser medical industries. The narrow linewidth diode lasers utilize wavelength-locking technique with volume Bragging gratings (VBG), are preferred for Raman spectroscopy and other analytical applications. The diode laser stacks with multiple wavelengths, FAC collimation, and wide temperature range are ideally suited for solid-state laser pumping.Single-emitter diode lasers,fiber arrays or other diode lasers and systems can be used in laser processing industry.
-
AA-4 Series Conduction-cooled Diode Laser Array
790-812nm
940nm to 960nm available upon request
28-36 Bars
Per Bar:100-200W -
2400W Conduction Cooled QCW Diode Side-Pumped Module
Pump Wavelength:808nm
18-24 Bars
Pump Peak Power:1800-2400W -
7200W Conduction Cooled QCW Diode Side-Pumped Module
Pump Wavelength:808nm
48-72 Bars
Pump Peak Power:4800-7200W -
3000W Water Cooled QCW Diode Side-pumped Module
Pump Wavelength:808nm
12 Bars
Pump Peak Power:2400-3000W -
7500W Water Cooled QCW Diode Side-pumped Module
Pump Wavelength:808nm
30 Bars
Pump Peak Power:6000-7500W -
15000W Water Cooled QCW Diode Side-pumped Module
Pump Wavelength:808nm
60 Bars
Pump Peak Power:12000-15000W -
WV10 808nm-600W Macro Channel Diode Laser Array
808nm
Output Power:600W
Multi-wavelength operation: 755/808/940/1064nm -
WV11 808nm-1200W Macro Channel Diode Laser Array
808nm
Output Power:1200W
Multi-wavelength operation: 755/808/940/1064nm -

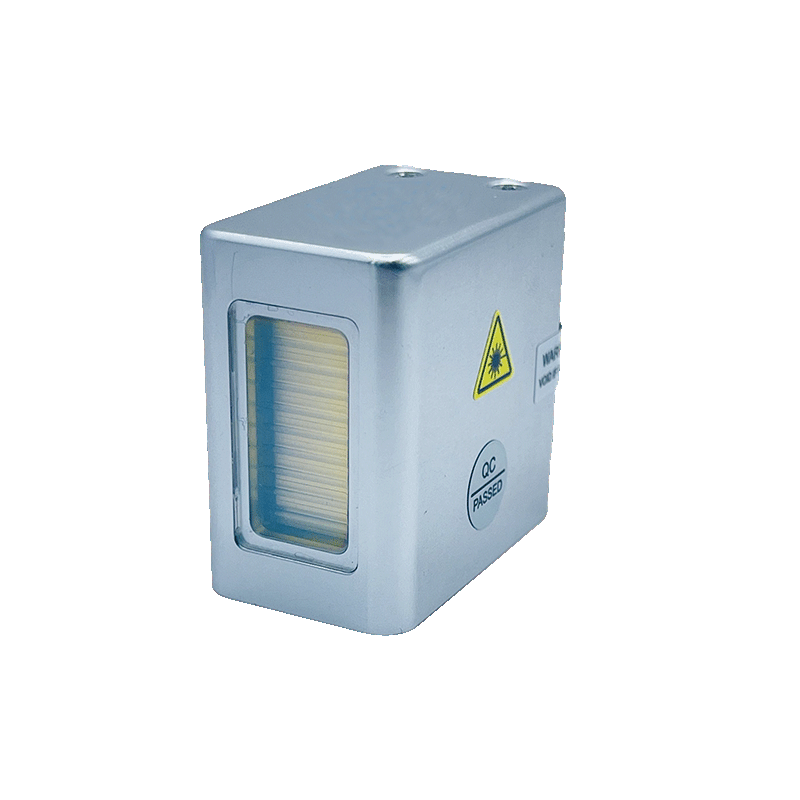

WV13 808nm-2400W Macro Channel Diode Laser Array
808nm
Output Power:2400W
Multi-wavelength operation: 755/808/940/1064nm -
PA-1 Series Conduction Cooled Polygonal Diode Laser Array
790-812nm
940nm to 960nm available upon request
1-4 Bars
Per Bar:100-200W -
PA-2 Series Conduction Cooled Polygonal Diode Laser Array
790-812nm
940nm to 960nm available upon request
2-8 Bars
Per Bar:100-200W -

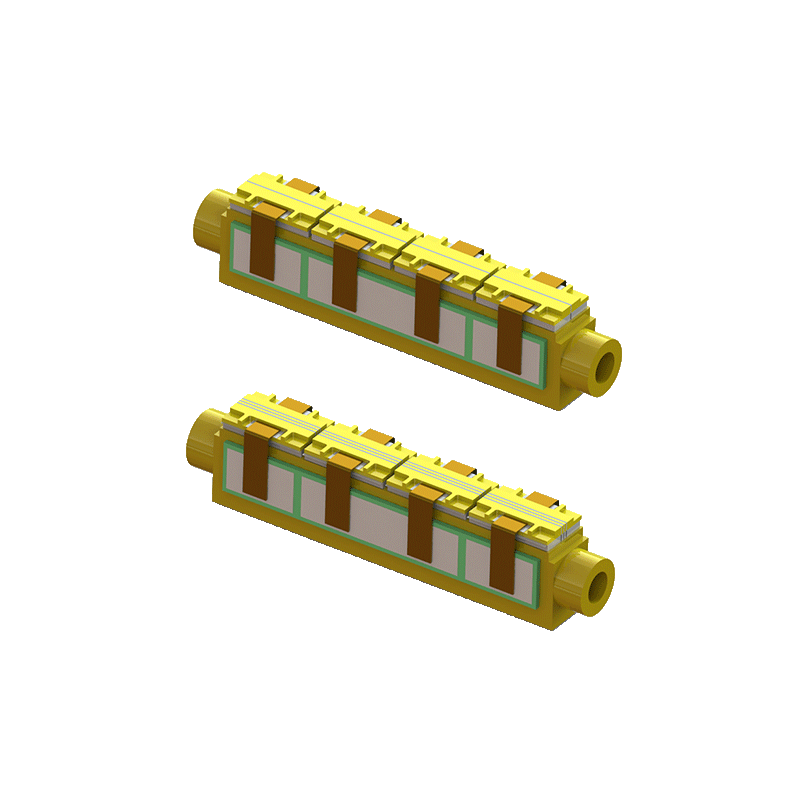

WA-4 Series Water Cooled Diode Laser Array
790-812nm
940nm to 960nm available upon request
4-12 Bars
Per Bar:100-250W -

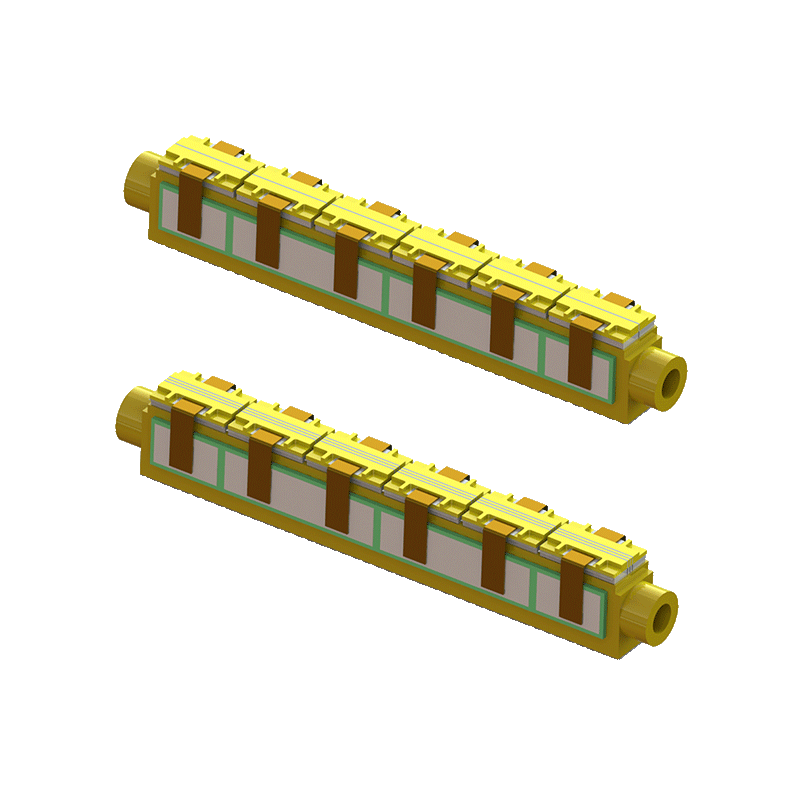

WA-6 Series Water Cooled Diode Laser Array
790-812nm
940nm to 960nm available upon request
6-18 Bars
Per Bar:100-300W -
AWMO Series Diode Laser Modules
450nm, 635nm, 650nm, 675nm, 695nm, 755nm, 785nm, 808nm, 830nm, 880nm, 915nm, 940nm, 980nm, 1064nm, 1320nm, 1470nm, 1550nm, 1720nm, 1940nm
Multi-wavelength
CW Output Power:3-10W
Maximum Average Output Power:15 / 30W -
AWM Series Diode Laser System
450nm, 635nm, 650nm, 675nm, 695nm, 755nm, 785nm, 808nm, 830nm, 880nm, 915nm, 940nm, 980nm, 1064nm, 1320nm, 1470nm, 1550nm, 1720nm, 1940nm
Multi-wavelength
CW Output Power:3-10W
Maximum Average Output Power:30W
